      hilidac has created the MQA-Supported Beam 3 Plus which enables you to experience the abundant music details in the artists' recording room. The Beam 3 Plus is 3.5mm, 4.4mm BAL with Bluetooth  earphone ports USB product to offer an integrated MQA renderer hardware, making MQA playback easy and complete. That means allowing it to connect to an MQA Core signal and complete the final unfold step of an MQA file. The Beam 3Plus LED glows magenta to indicate the unit is rendering an MQA stream or file, where the final MQA unfold is delivered. Sporting a single ES9281AC PRO chip from ESS featuring HyperStream II QUAD DAC which allows the left and right channel to operate independently. This, coupled with a  OP-AMP configuration for the DAC/Amp. It also comes equipped with two ultra-low femtosecond phase crystal oscillators designed to provide best-in-class audio performance at 118 dB DNR and 0.0003% THD + N.













參數

 Specifications



輸出功率

3.5mm SE:

≥141mW (16Ω)
≥122mW (32Ω)
≥7mW (600Ω)

4.4mm BAL:

≥110mW (16Ω)
≥230mW (32Ω)
≥28mW (600Ω)

Output Power

3.5mm SE:

≥141mW (16Ω)
≥122mW (32Ω)
≥7mW (600Ω)

4.4mm BAL:

≥110mW (16Ω)
≥230mW (32Ω)
≥28mW (600Ω)

频响

20Hz-40kHz
(-0.032dB

Frequency Response

20Hz-40kHz
(-0.032dB

失真+噪声

0.0003%

THD+N

0.0003%

信噪比

≥118 dB SNR

SNR

≥118 dB SNR

PCM采样率

PCM/DXD 16-32bit,
32kHz-768kHz

Sampling Rate


PCM/DXD 16-32bit,
32kHz-768kHz

支持DSD規格

高达DSD512

DSD Support

Up to DSD512

內阻

<1Ω

I.R.

<1Ω

MQA

执行MQA渲染,该渲染将提供MQA文件的最终展开

MQA

Performs MQA Rendering which delivers the final unfold of the MQA file

运放

独立运放芯片

Op Amp

 OP AMP Chips

输入接口

Type-C

Input port

Type-C

输出

3.5mm单端

4.4mm平衡

Output Port

3.5mm Single

4.4mm BAL

尺寸

75x39x12mm

Dimensions

75x39x12mm

淨重

69g

Weight

69g

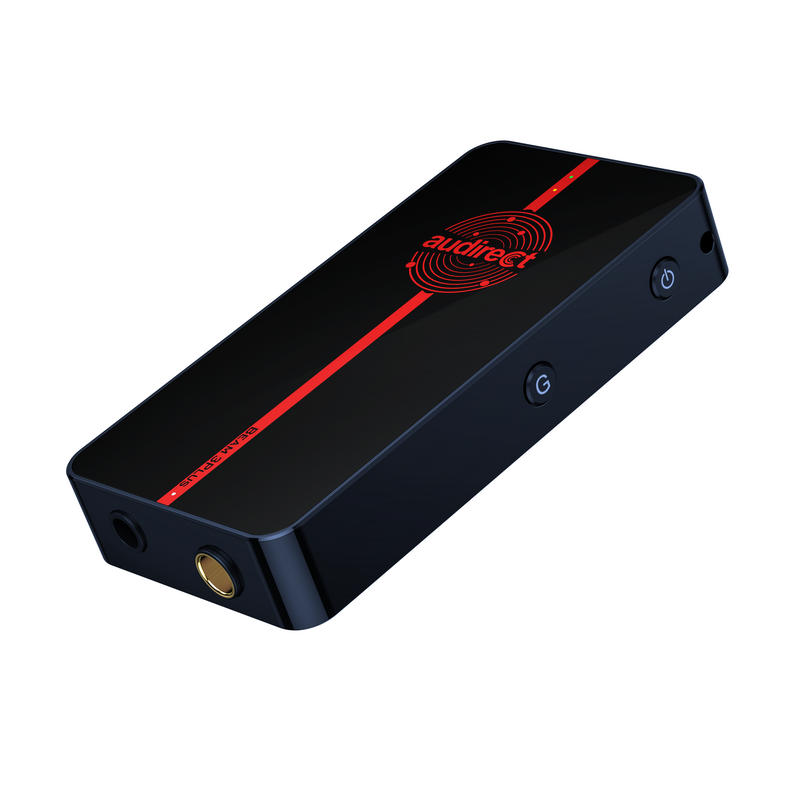

Audirect Beam 3 Plus - 3.5mm & 4.4mm with Bluetooth MQA/DSD mini-DAC

$199.00價格
  •
